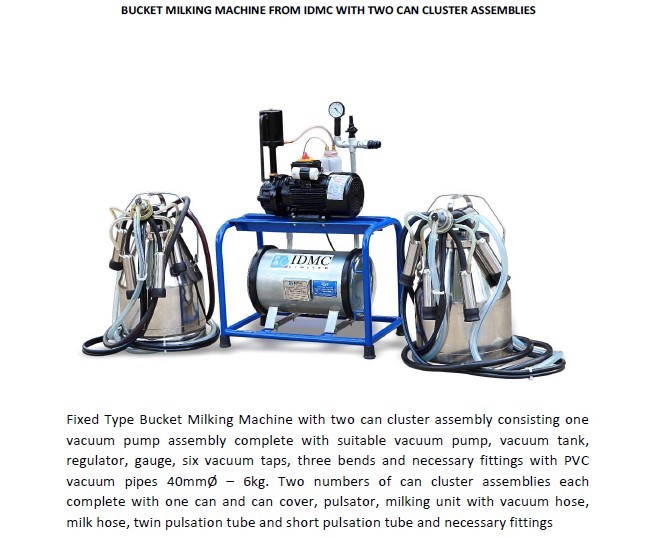

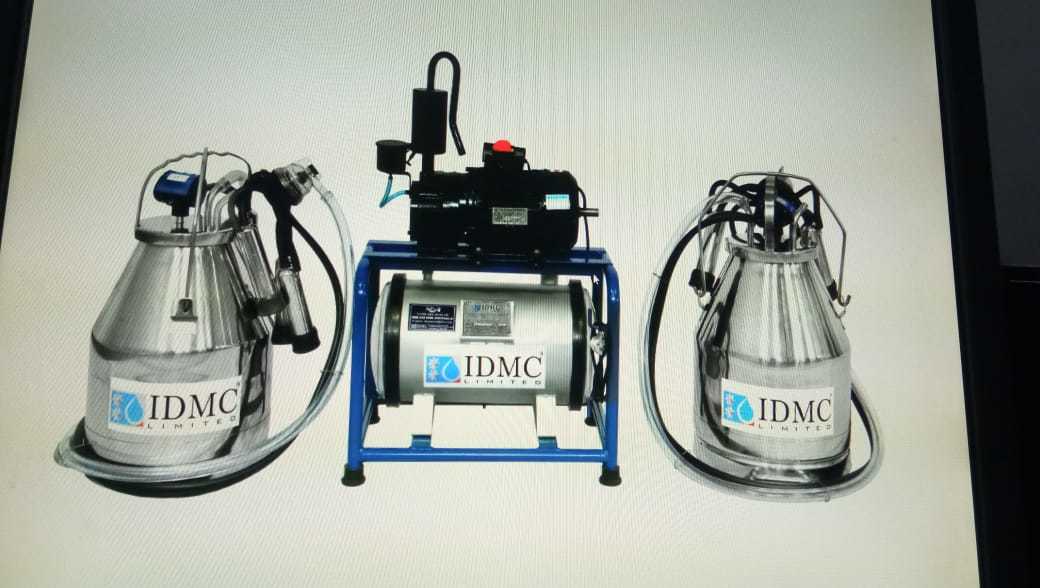

Sr. No Particulars 1 Cluster - 1Bucket (Cow)/ 2 Cluster â 2 Bucket (Cow)
1 TYPE Fixed
2 Noof Milking Cluster 1 /2 No
3 Noof Milking Bucket 1 /2 No
A VacuumSystem with stand duly
HotDip Galvanized with Nuts &
Bolts
A1 Vacuum Tankmaterial of Hot Dip galvanized, minimum capacity 15 ltr,transparent lid
construction, Capacity, Safety
A2 Electric motorwith cable 1 Hp single phase, 1440 rpm with on off switch, (1 No)
A3 VacuumPump Direct coupled with motor, oil lubricated ,190 LPM (1 No)
4 Vacuum Line (only specification 40 mm 6 Kg density PVC pipes and fittings make : 50 ft
as a guide line) (not in the scope of supply to be purchased by farmer)
5 VacuumRegulator Spring Loaded vacuum 44to 48 Kpa adjustable(1 No)
6 Vacuumgauge Dial Type, 0 to (-)100 Kpa/(-) 360 mm Hg range (1 No)
7 Vacuumvalves 3 nos for single bucket / 6 nos for double bucket B MilkingCan with Lid (1 /2 )
B1 Quantity inNo One/ Two
B2 Milk can , materialof AISI 304
construction
B3 Capacity 25 lit
B4 Finishing andcarrying Seamlessfinish, with can carrying handle and rounded bottom (Dairy Finish)
C Pulsator - Mountedon can lid
withadaptor/ check valves:
C1 Qty 1 No pneumatic per bucket
C2 Puls Rate/ Pulseratio 60pulses per min/ 60:40 D Milk Tube
D1 Qty (No) 1.9 mtr Food grade
D2 Short pulsationtube with every teat cup short pulsationtube for pulsation of liners
D3 Double pulsationtube It is attached to pulsator and milk claw
D4 Food safety nontoxic, food grade, comply Bfr /FDAstandards. E Milking Cluster / Claw
E1 Qty (No) 1 No per bucket
E2 Cluster weight/ Clawvolume minimum 2000 gram/ minimum 150 CC transparent
E4 Air bleed/ nozzle should have air admission hole
E5 Liners nontoxic, food grade, comply BfR / FDAstandards
E6 Cleaning Sets of cleaning brush included one long brush for milk
tube cleaning and shortbrush for rubber liner cleaning.
E7 SS teat cups SS 304suitable to liners
